ليتوكالا • 14S-52V • BMS 30A

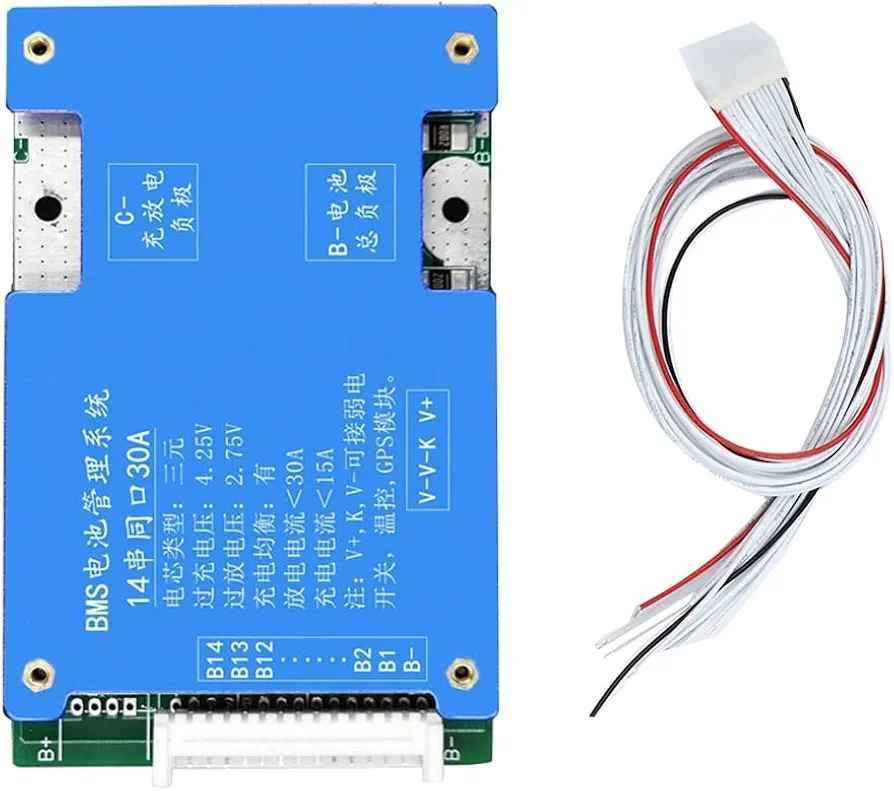

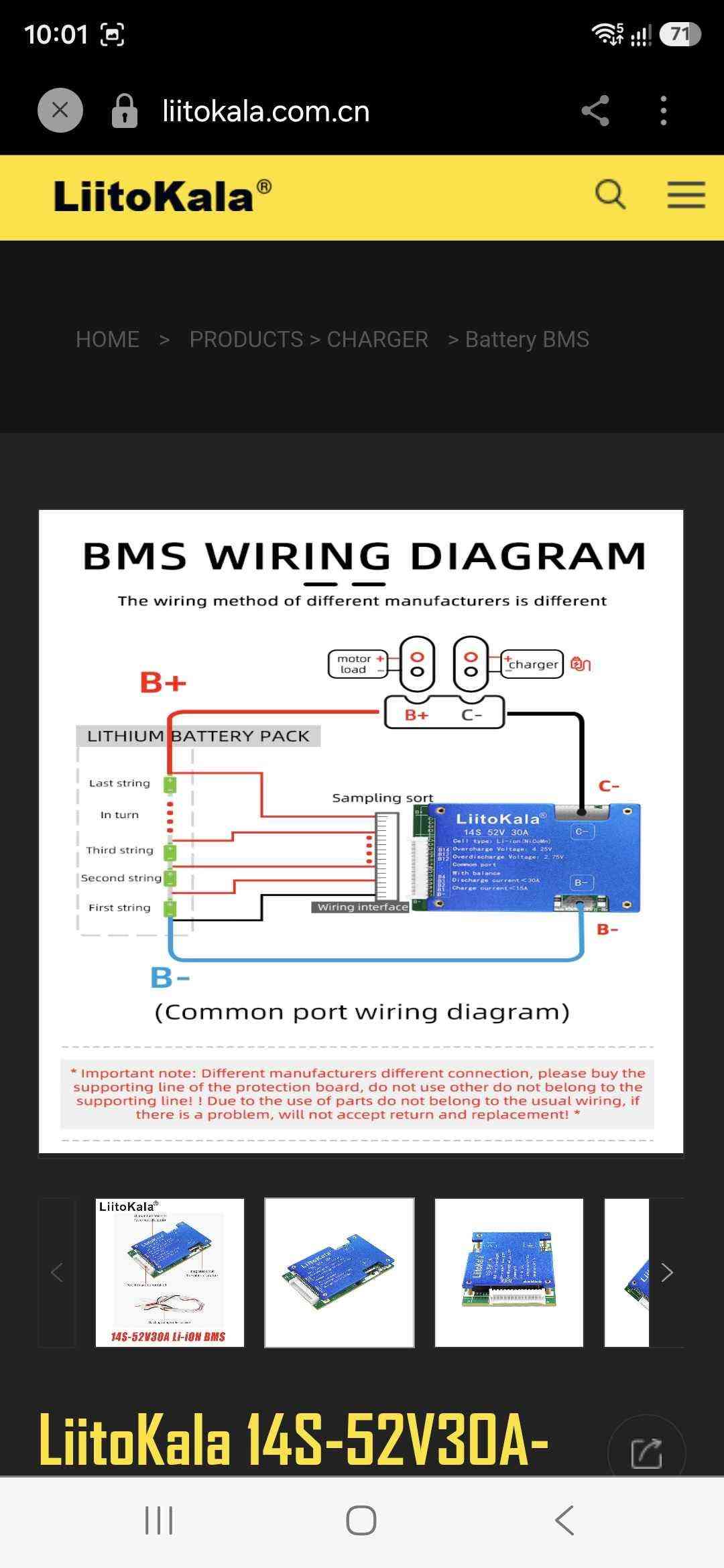

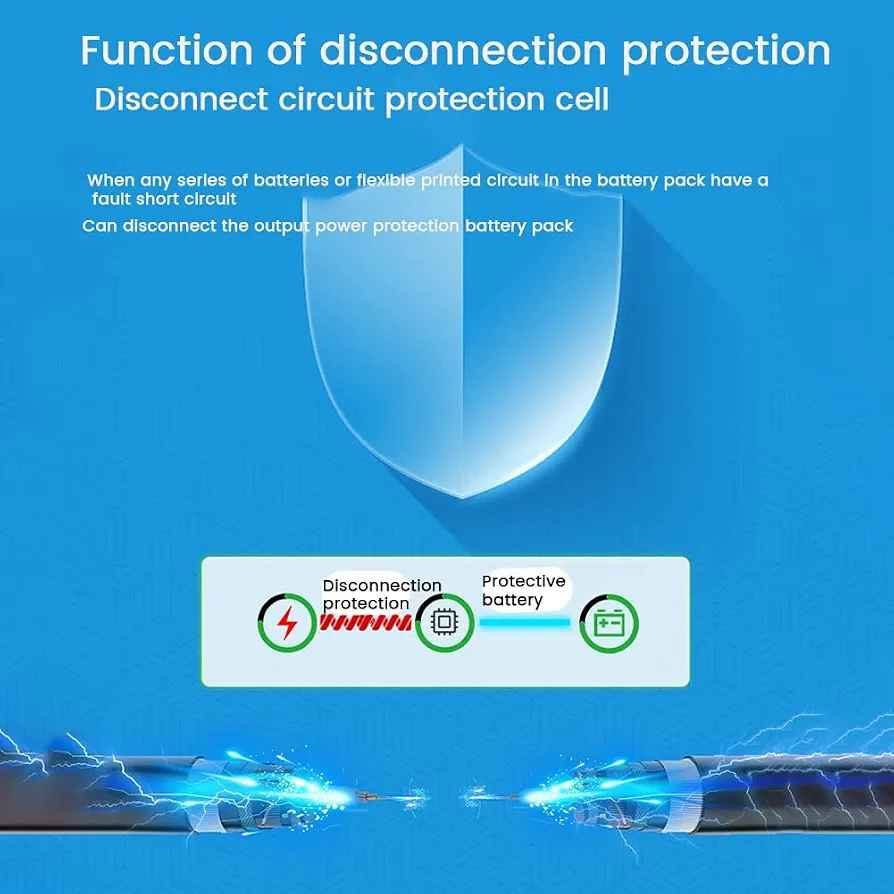

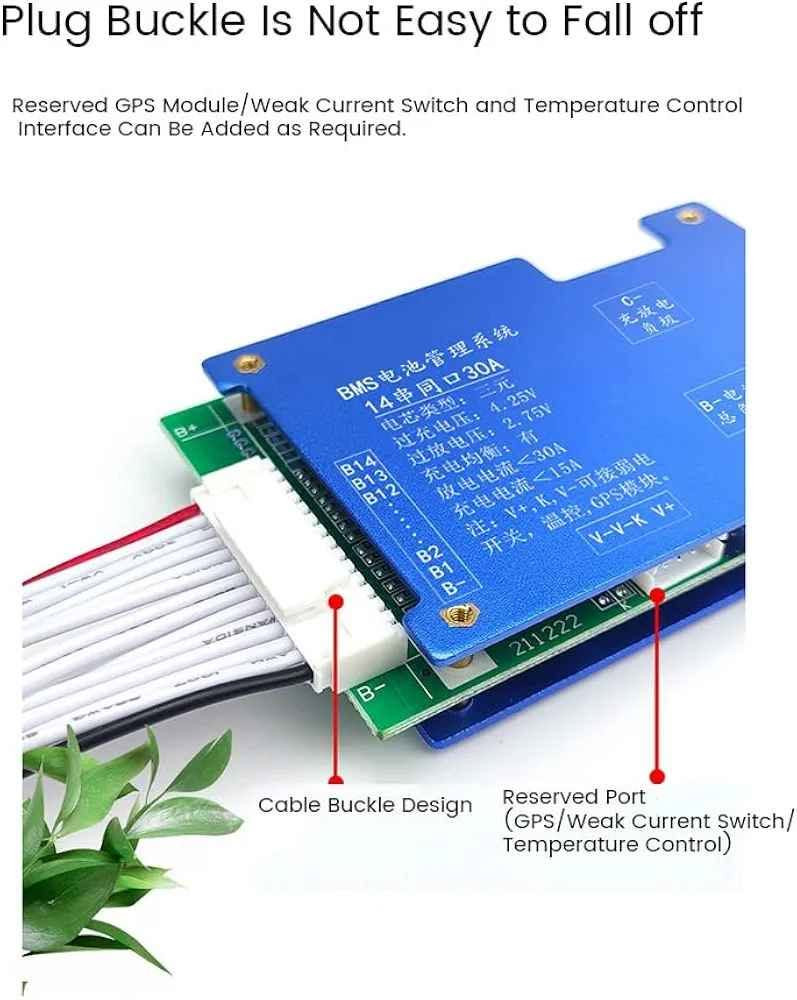

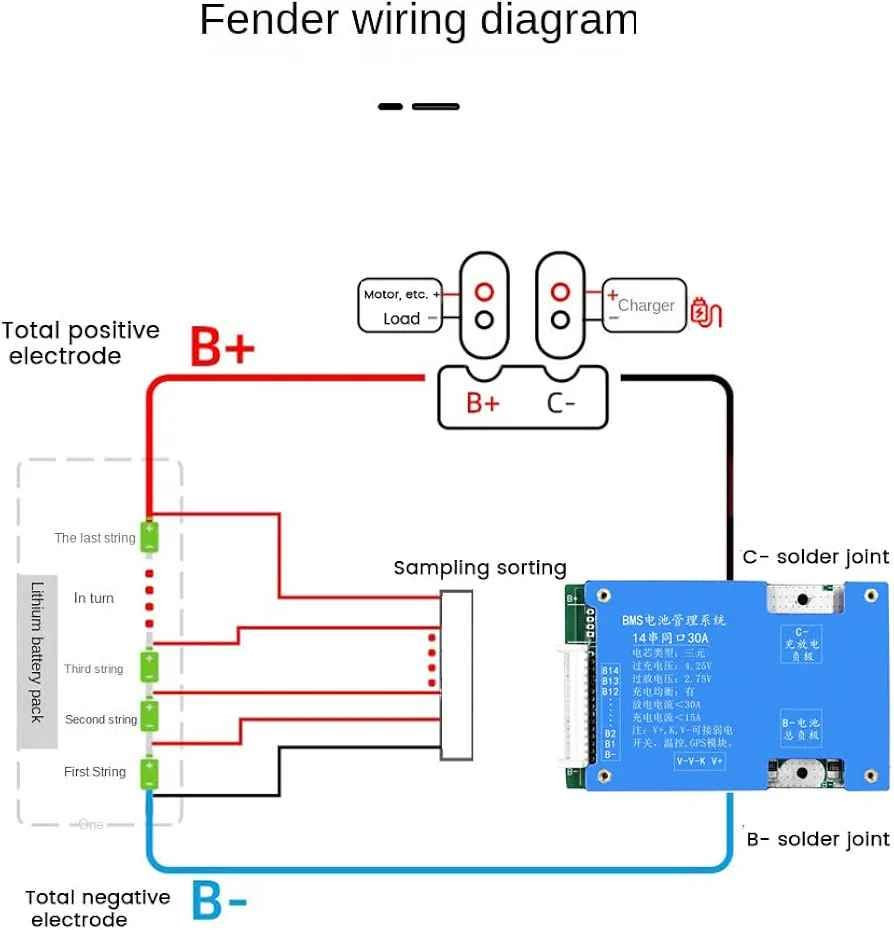

LiitoKala 14S-52V30A-BMS Specifications : Brand:LiitoKala Model:12S-52V30A-BMS Detection voltage: 52±15MV Discharge current: ＜30A Charging current: ＜15A Size:87*55*15mm±1mm السليمانية, العراق نص مكتوب في الصور: - Function of disconnection protection Disconnect circuit protection cell When any series of batteries or flexible printed circuit in the battery pack have a fault short circuit Can disconnect the output power protection battery pack Disconnection protection Protective battery - Fender wiring diagram - Total positive electrode B+ - Motor, etc. + Load - - Charger + - B+ C- - Sampling sorting - C- solder joint - BMS电池管理系统 - 14串同口30A - 电芯类型: 三元 - 过充电压: 4.25V - 过放电压: 2.75V - 充电均衡: 有 - 放电电流<30A - 充电电流<15A - 注: P-, V-, N, S-可接弱电 - 开关,温控,GPS模块. - V- V- K V+ - B- solder joint - First String - Second string - Third string - In turn - The last string - Lithium battery pack - -one- - Total negative electrode B- - Plug Buckle Is Not Easy to Fall off Reserved GPS Module/Weak Current Switch and Temperature Control Interface Can Be Added as Required. Cable Buckle Design Reserved Port (GPS/Weak Current Switch/Temperature Control) - LiitoKala All aluminum heat sink Faster heat dissipation Port: firm and do not fall off Integrated circuit The solution is mature Matching voltage collection wire 14S-52V30A Li-ion BMS LiitoKala 14S-52V30A- - 10:01 liitokala.com.cn HOME > PRODUCTS > CHARGER > Battery BMS BMS WIRING DIAGRAM The wiring method of different manufacturers is different B+ motor + load charger LITHIUM BATTERY PACK Last string Sampling sort In turn LiitoKala 14S 52V 30A Cell type Li-ion (Ni-CoMn) B14 Overcharge Voltage: 4.25V B12 Overcharge Voltage: 2.75V Common port With balance Third string Discharge current <30A Charge current <15A Second string Wiring interface First string B- B- (Common port wiring diagram) * Important note: Different manufacturers different connection, please buy the supporting line of the protection board, do not use other do not belong to the supporting line! ! Due to the use of parts do not belong to the usual wiring, if there is a problem, will not accept return and replacement! * LiitoKala 14S-52V30A Li-ion BMS LiitoKala 14S-52V30A-
