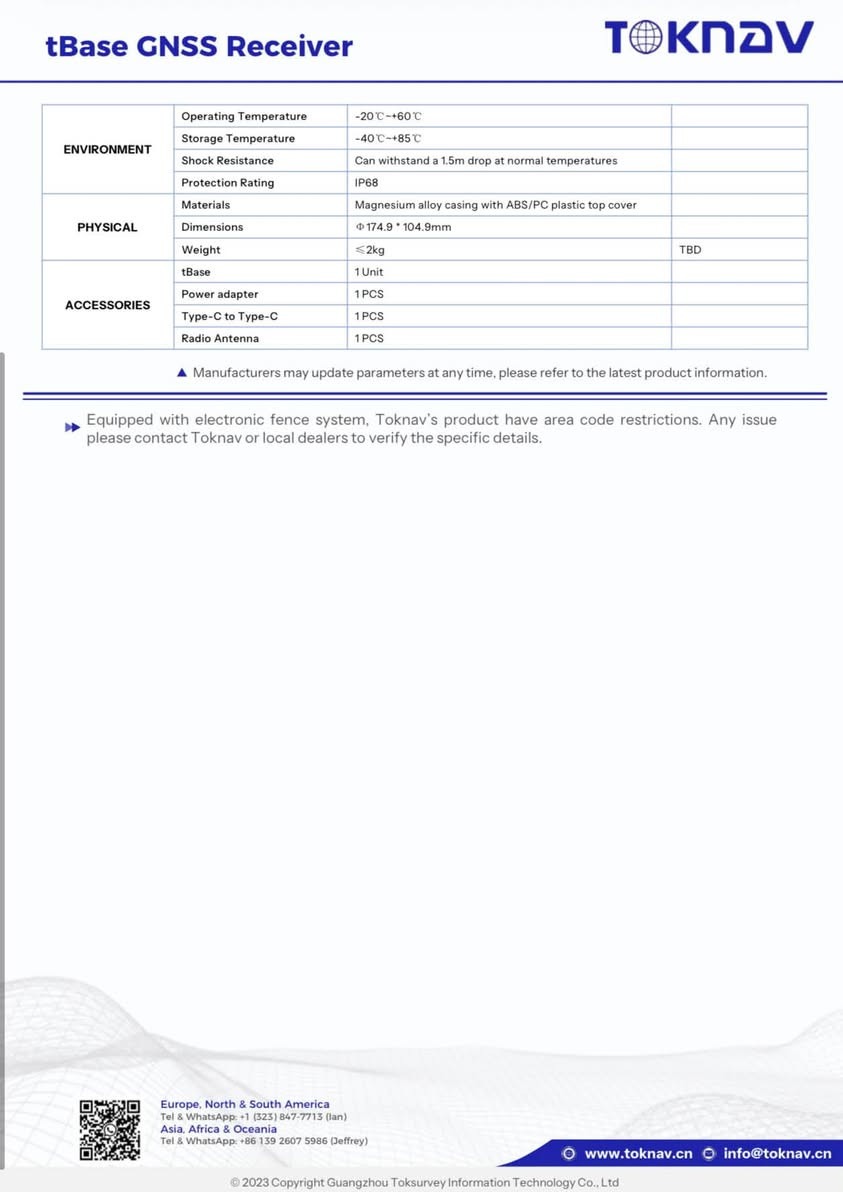

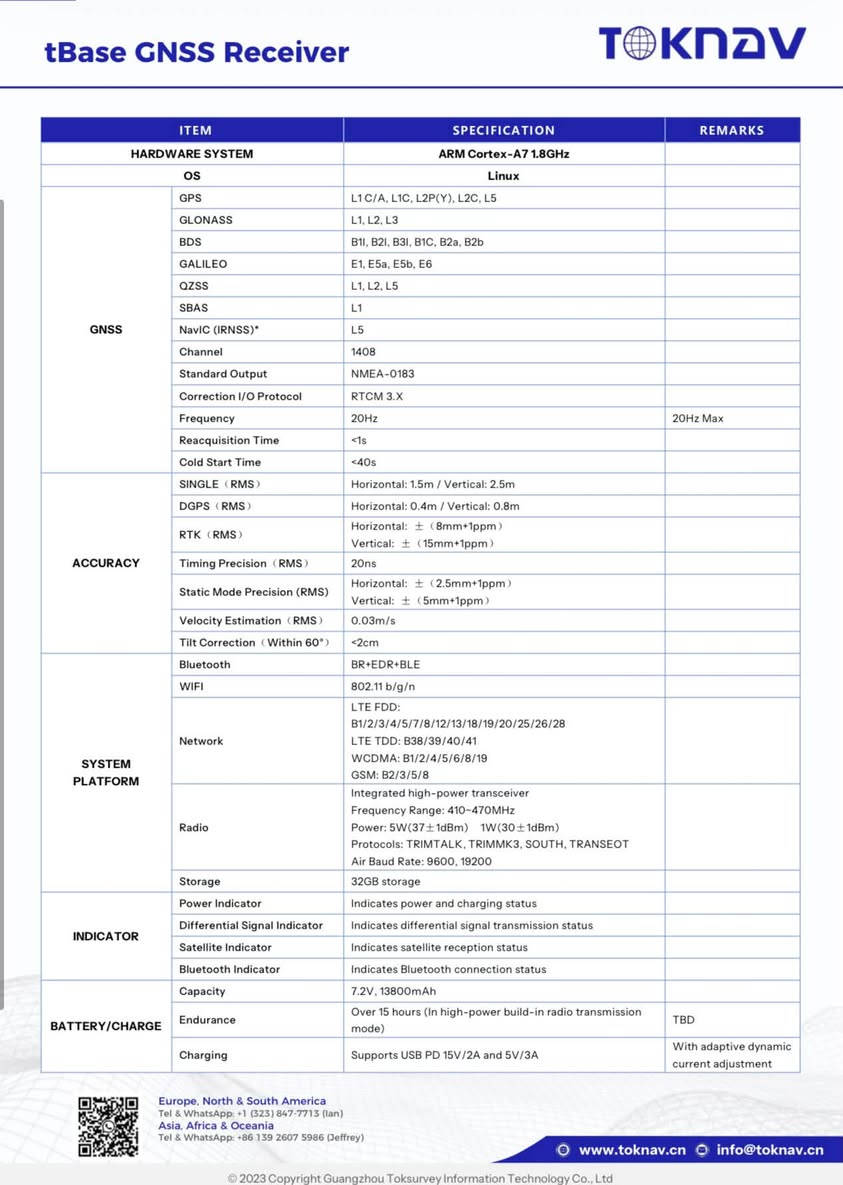

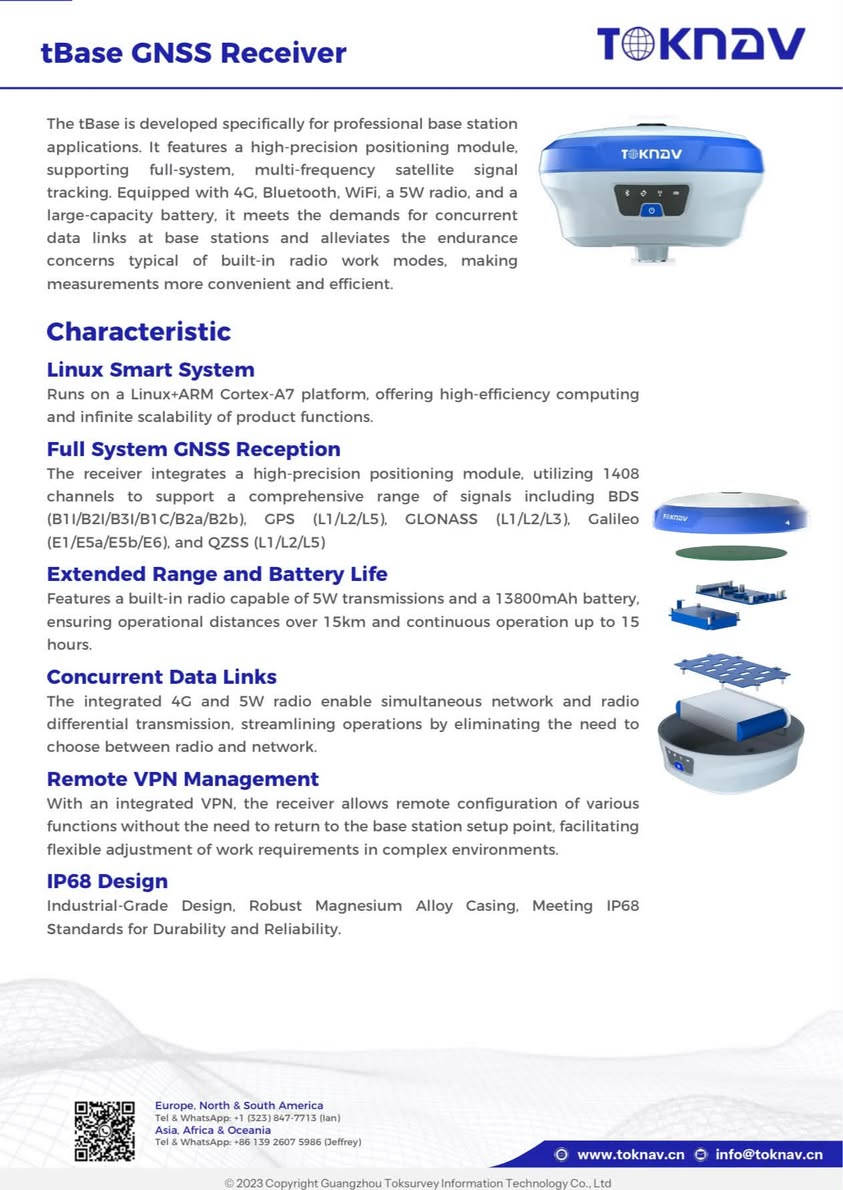

شركة الاحتراف الهندسي الوكيل الحصري في العراق لشركة TOKNAV tBase GNSS Receiver � دقة عالية +قوة ارسال + بطارية طويلة � 1408 قناة GNSS 🔹 يدعم GPS / GLONASS / BDS / GALILEO / QZSS / SBAS / NavIC 🔹 دقة RTK تصل إلى: ±(8mm + 1ppm) أفقياً ±(15mm + 1ppm) عمودياً 🔹 دقة الوضع Static تصل إلى ±2.5mm + 1ppm أفقياً 🔹 IMU Tilt مع تصحيح الميل حتى 60° 🔹 راديو UHF داخلي عالي القدرة 410–470 MHz 🔹 قدرة إرسال تصل إلى 5W حسب الإعداد 🔹 يدعم 4G + Wi-Fi + Bluetooth 🔹 يدعم بروتوكولات الراديو TRIMTALK / TRIMMK3 / SOUTH / TRANSEOT 🔹 تردد تحديث يصل إلى 20Hz 🔹 ذاكرة داخلية 32GB 🔹 بطارية ضخمة 13,800mAh 🔹 تشغيل أكثر من 12 ساعة في وضع Base مع راديو 5W 🔹 حماية IP68 ضد الماء والغبار 🔹 يتحمل السقوط حتى 1.5 متر 🔹 هيكل قوي من سبائك المغنيسيوم 🔹 وزن 1.5 كغم 🔹 أبعاد 174.9 × 104.9mm 🔹 يعمل بدرجات حرارة من -20°C إلى +60°C. يغطي مساحة 15km � ويانا هدايا عند الشراء: 📏 Pole (رود) ⚡ فلاش 🎁 هدايا إضافية 💵السعر 2,500,000 🛡️ ضمان وخدمة ما بعد البيع 🏢 شركة الاحتراف الهندسي 📍 بغداد – نفق الشرطة 📞 للطلب والاستفسار: *********** نص مكتوب في الصور: - TOKnAV tBase GNSS Receiver The tBase is developed specifically for professional base station applications. It features a high-precision positioning module, supporting full-system, multi-frequency satellite signal tracking. Equipped with 4G, Bluetooth, WiFi, a 5W radio, and a large-capacity battery, it meets the demands for concurrent data links at base stations and alleviates the endurance concerns typical of built-in radio work modes, making measurements more convenient and efficient. Characteristic Linux Smart System Runs on a Linux+ARM Cortex-A7 platform, offering high-efficiency computing and infinite scalability of product functions. Full System GNSS Reception The receiver integrates a high-precision positioning module, utilizing 1408 channels to support a comprehensive range of signals including BDS (B1I/B2I/B3I/B1C/B2a/B2b), GPS (L1/L2/L5), GLONASS (L1/L2/L3), Galileo (E1/E5a/E5b/E6), and QZSS (L1/L2/L5) Extended Range and Battery Life Features a built-in radio capable of 5W transmissions and a 13800mAh battery, ensuring operational distances over 15km and continuous operation up to 15 hours. Concurrent Data Links The integrated 4G and 5W radio enable simultaneous network and radio differential transmission, streamlining operations by eliminating the need to choose between radio and network. Remote VPN Management With an integrated VPN, the receiver allows remote configuration of various functions without the need to return to the base station setup point, facilitating flexible adjustment of work requirements in complex environments. IP68 Design Industrial-Grade Design, Robust Magnesium Alloy Casing, Meeting IP68 Standards for Durability and Reliability. Europe, North & South America Tel & WhatsApp: +1 (323) 847-7713 (Ian) Asia, Africa & Oceania Tel & WhatsApp: +86 139 2607 5986 (Jeffrey) www.toknav.cn info@toknav.cn 2023 Copyright Guangzhou Toksurvey Information Technology Co., Ltd - tBase GNSS Receiver TOKNAV ITEM SPECIFICATION REMARKS HARDWARE SYSTEM ARM Cortex-A7 1.8GHz OS Linux GPS L1 C/A, L1C, L2P(Y), L2C, L5 GLONASS L1, L2, L3 BDS B1I, B2I, B3I, B1C, B2a, B2b GALILEO E1, E5a, E5b, E6 QZSS L1, L2, L5 SBAS L1 GNSS NavIC (IRNSS)* L5 Channel 1408 Standard Output NMEA-0183 Correction I/O Protocol RTCM 3.X Frequency 20Hz 20Hz Max Reacquisition Time <1s Cold Start Time <40s ACCURACY SINGLE (RMS) Horizontal: 1.5m / Vertical: 2.5m DGPS (RMS) Horizontal: 0.4m / Vertical: 0.8m RTK (RMS) Horizontal: ± (8mm+1ppm) Vertical: ± (15mm+1ppm) Timing Precision (RMS) 20ns Static Mode Precision (RMS) Horizontal: ± (2.5mm+1ppm) Vertical: ± (5mm+1ppm) Velocity Estimation (RMS) 0.03m/s Tilt Correction (Within 60°) <2cm SYSTEM PLATFORM Bluetooth BR+EDR+BLE WIFI 802.11 b/g/n Network LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 LTE TDD: B38/39/40/41 WCDMA: B1/2/4/5/6/8/19 GSM: B2/3/5/8 Radio Integrated high-power transceiver Frequency Range: 410~470MHz Power: 5W(37±1dBm) 1W(30±1dBm) Protocols: TRIMTALK, TRIMMK3, SOUTH, TRANSEOT Air Baud Rate: 9600, 19200 Storage 32GB storage INDICATOR Power Indicator Indicates power and charging status Differential Signal Indicator Indicates differential signal transmission status Satellite Indicator Indicates satellite reception status Bluetooth Indicator Indicates Bluetooth connection status BATTERY/CHARGE Capacity 7.2V, 13800mAh Endurance Over 15 hours (In high-power build-in radio transmission mode) TBD Charging Supports USB PD 15V/2A and 5V/3A With adaptive dynamic current adjustment Europe, North & South America Tel & WhatsApp: +1 (323) 847-7713 (Ian) Asia, Africa & Oceania Tel & WhatsApp: +86 139 2607 5986 (Jeffrey) www.toknav.cn info@toknav.cn © 2023 Copyright Guangzhou Toksurvey Information Technology Co., Ltd - tBase GNSS Receiver TOKNAV ENVIRONMENT Operating Temperature -20 C~+60 C Storage Temperature -40 C~+85 C Shock Resistance Can withstand a 1.5m drop at normal temperatures Protection Rating IP68 PHYSICAL Materials Magnesium alloy casing with ABS/PC plastic top cover Dimensions Ф174.9 * 104.9mm Weight ≤2kg TBD ACCESSORIES tBase 1 Unit Power adapter 1 PCS Type-C to Type-C 1 PCS Radio Antenna 1 PCS Manufacturers may update parameters at any time, please refer to the latest product information. Equipped with electronic fence system, Toknav's product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details. Europe, North & South America Tel & WhatsApp: +1 (323) 847-7713 (Ian) Asia, Africa & Oceania Tel & WhatsApp: +86 139 2607 5986 (Jeffrey) www.toknav.cn info@toknav.cn 2023 Copyright Guangzhou Toksurvey Information Technology Co., Ltd
شركة الاحتراف الهندسي الوكيل الحصري في العراق لشركة TOKNAV tBase GNSS Receiver � دقة عالية +قوة ارسال + بطارية طويلة � 1408 قناة GNSS 🔹 يدعم GPS / GLONASS / BDS / GALILEO / QZSS / SBAS / NavIC 🔹 دقة RTK تصل إلى: ±(8mm + 1ppm) أفقياً ±(15mm + 1ppm) عمودياً 🔹 دقة الوضع Static تصل إلى ±2.5mm + 1ppm أفقياً 🔹 IMU Tilt مع تصحيح الميل حتى 60° 🔹 راديو UHF داخلي عالي القدرة 410–470 MHz 🔹 قدرة إرسال تصل إلى 5W حسب الإعداد 🔹 يدعم 4G + Wi-Fi + Bluetooth 🔹 يدعم بروتوكولات الراديو TRIMTALK / TRIMMK3 / SOUTH / TRANSEOT 🔹 تردد تحديث يصل إلى 20Hz 🔹 ذاكرة داخلية 32GB 🔹 بطارية ضخمة 13,800mAh 🔹 تشغيل أكثر من 12 ساعة في وضع Base مع راديو 5W 🔹 حماية IP68 ضد الماء والغبار 🔹 يتحمل السقوط حتى 1.5 متر 🔹 هيكل قوي من سبائك المغنيسيوم 🔹 وزن 1.5 كغم 🔹 أبعاد 174.9 × 104.9mm 🔹 يعمل بدرجات حرارة من -20°C إلى +60°C. يغطي مساحة 15km � ويانا هدايا عند الشراء: 📏 Pole (رود) ⚡ فلاش 🎁 هدايا إضافية 💵السعر 2,500,000 🛡️ ضمان وخدمة ما بعد البيع 🏢 شركة الاحتراف الهندسي 📍 بغداد – نفق الشرطة 📞 للطلب والاستفسار: *********** نص مكتوب في الصور: - TOKnAV tBase GNSS Receiver The tBase is developed specifically for professional base station applications. It features a high-precision positioning module, supporting full-system, multi-frequency satellite signal tracking. Equipped with 4G, Bluetooth, WiFi, a 5W radio, and a large-capacity battery, it meets the demands for concurrent data links at base stations and alleviates the endurance concerns typical of built-in radio work modes, making measurements more convenient and efficient. Characteristic Linux Smart System Runs on a Linux+ARM Cortex-A7 platform, offering high-efficiency computing and infinite scalability of product functions. Full System GNSS Reception The receiver integrates a high-precision positioning module, utilizing 1408 channels to support a comprehensive range of signals including BDS (B1I/B2I/B3I/B1C/B2a/B2b), GPS (L1/L2/L5), GLONASS (L1/L2/L3), Galileo (E1/E5a/E5b/E6), and QZSS (L1/L2/L5) Extended Range and Battery Life Features a built-in radio capable of 5W transmissions and a 13800mAh battery, ensuring operational distances over 15km and continuous operation up to 15 hours. Concurrent Data Links The integrated 4G and 5W radio enable simultaneous network and radio differential transmission, streamlining operations by eliminating the need to choose between radio and network. Remote VPN Management With an integrated VPN, the receiver allows remote configuration of various functions without the need to return to the base station setup point, facilitating flexible adjustment of work requirements in complex environments. IP68 Design Industrial-Grade Design, Robust Magnesium Alloy Casing, Meeting IP68 Standards for Durability and Reliability. Europe, North & South America Tel & WhatsApp: +1 (323) 847-7713 (Ian) Asia, Africa & Oceania Tel & WhatsApp: +86 139 2607 5986 (Jeffrey) www.toknav.cn info@toknav.cn 2023 Copyright Guangzhou Toksurvey Information Technology Co., Ltd - tBase GNSS Receiver TOKNAV ITEM SPECIFICATION REMARKS HARDWARE SYSTEM ARM Cortex-A7 1.8GHz OS Linux GPS L1 C/A, L1C, L2P(Y), L2C, L5 GLONASS L1, L2, L3 BDS B1I, B2I, B3I, B1C, B2a, B2b GALILEO E1, E5a, E5b, E6 QZSS L1, L2, L5 SBAS L1 GNSS NavIC (IRNSS)* L5 Channel 1408 Standard Output NMEA-0183 Correction I/O Protocol RTCM 3.X Frequency 20Hz 20Hz Max Reacquisition Time <1s Cold Start Time <40s ACCURACY SINGLE (RMS) Horizontal: 1.5m / Vertical: 2.5m DGPS (RMS) Horizontal: 0.4m / Vertical: 0.8m RTK (RMS) Horizontal: ± (8mm+1ppm) Vertical: ± (15mm+1ppm) Timing Precision (RMS) 20ns Static Mode Precision (RMS) Horizontal: ± (2.5mm+1ppm) Vertical: ± (5mm+1ppm) Velocity Estimation (RMS) 0.03m/s Tilt Correction (Within 60°) <2cm SYSTEM PLATFORM Bluetooth BR+EDR+BLE WIFI 802.11 b/g/n Network LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 LTE TDD: B38/39/40/41 WCDMA: B1/2/4/5/6/8/19 GSM: B2/3/5/8 Radio Integrated high-power transceiver Frequency Range: 410~470MHz Power: 5W(37±1dBm) 1W(30±1dBm) Protocols: TRIMTALK, TRIMMK3, SOUTH, TRANSEOT Air Baud Rate: 9600, 19200 Storage 32GB storage INDICATOR Power Indicator Indicates power and charging status Differential Signal Indicator Indicates differential signal transmission status Satellite Indicator Indicates satellite reception status Bluetooth Indicator Indicates Bluetooth connection status BATTERY/CHARGE Capacity 7.2V, 13800mAh Endurance Over 15 hours (In high-power build-in radio transmission mode) TBD Charging Supports USB PD 15V/2A and 5V/3A With adaptive dynamic current adjustment Europe, North & South America Tel & WhatsApp: +1 (323) 847-7713 (Ian) Asia, Africa & Oceania Tel & WhatsApp: +86 139 2607 5986 (Jeffrey) www.toknav.cn info@toknav.cn © 2023 Copyright Guangzhou Toksurvey Information Technology Co., Ltd - tBase GNSS Receiver TOKNAV ENVIRONMENT Operating Temperature -20 C~+60 C Storage Temperature -40 C~+85 C Shock Resistance Can withstand a 1.5m drop at normal temperatures Protection Rating IP68 PHYSICAL Materials Magnesium alloy casing with ABS/PC plastic top cover Dimensions Ф174.9 * 104.9mm Weight ≤2kg TBD ACCESSORIES tBase 1 Unit Power adapter 1 PCS Type-C to Type-C 1 PCS Radio Antenna 1 PCS Manufacturers may update parameters at any time, please refer to the latest product information. Equipped with electronic fence system, Toknav's product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details. Europe, North & South America Tel & WhatsApp: +1 (323) 847-7713 (Ian) Asia, Africa & Oceania Tel & WhatsApp: +86 139 2607 5986 (Jeffrey) www.toknav.cn info@toknav.cn 2023 Copyright Guangzhou Toksurvey Information Technology Co., Ltd
شركة الاحتراف الهندسي الوكيل الحصري في العراق لشركة TOKNAV tBase GNSS Receiver � دقة عالية +قوة ارسال + بطارية طويلة � 1408 قناة GNSS 🔹 يدعم GPS / GLONASS / BDS / GALILEO / QZSS / SBAS / NavIC 🔹 دقة RTK تصل إلى: ±(8mm + 1ppm) أفقياً ±(15mm + 1ppm) عمودياً 🔹 دقة الوضع Static تصل إلى ±2.5mm + 1ppm أفقياً 🔹 IMU Tilt مع تصحيح الميل حتى 60° 🔹 راديو UHF داخلي عالي القدرة 410–470 MHz 🔹 قدرة إرسال تصل إلى 5W حسب الإعداد 🔹 يدعم 4G + Wi-Fi + Bluetooth 🔹 يدعم بروتوكولات الراديو TRIMTALK / TRIMMK3 / SOUTH / TRANSEOT 🔹 تردد تحديث يصل إلى 20Hz 🔹 ذاكرة داخلية 32GB 🔹 بطارية ضخمة 13,800mAh 🔹 تشغيل أكثر من 12 ساعة في وضع Base مع راديو 5W 🔹 حماية IP68 ضد الماء والغبار 🔹 يتحمل السقوط حتى 1.5 متر 🔹 هيكل قوي من سبائك المغنيسيوم 🔹 وزن 1.5 كغم 🔹 أبعاد 174.9 × 104.9mm 🔹 يعمل بدرجات حرارة من -20°C إلى +60°C. يغطي مساحة 15km � ويانا هدايا عند الشراء: 📏 Pole (رود) ⚡ فلاش 🎁 هدايا إضافية 💵السعر 2,500,000 🛡️ ضمان وخدمة ما بعد البيع 🏢 شركة الاحتراف الهندسي 📍 بغداد – نفق الشرطة 📞 للطلب والاستفسار: *********** نص مكتوب في الصور: - TOKnAV tBase GNSS Receiver The tBase is developed specifically for professional base station applications. It features a high-precision positioning module, supporting full-system, multi-frequency satellite signal tracking. Equipped with 4G, Bluetooth, WiFi, a 5W radio, and a large-capacity battery, it meets the demands for concurrent data links at base stations and alleviates the endurance concerns typical of built-in radio work modes, making measurements more convenient and efficient. Characteristic Linux Smart System Runs on a Linux+ARM Cortex-A7 platform, offering high-efficiency computing and infinite scalability of product functions. Full System GNSS Reception The receiver integrates a high-precision positioning module, utilizing 1408 channels to support a comprehensive range of signals including BDS (B1I/B2I/B3I/B1C/B2a/B2b), GPS (L1/L2/L5), GLONASS (L1/L2/L3), Galileo (E1/E5a/E5b/E6), and QZSS (L1/L2/L5) Extended Range and Battery Life Features a built-in radio capable of 5W transmissions and a 13800mAh battery, ensuring operational distances over 15km and continuous operation up to 15 hours. Concurrent Data Links The integrated 4G and 5W radio enable simultaneous network and radio differential transmission, streamlining operations by eliminating the need to choose between radio and network. Remote VPN Management With an integrated VPN, the receiver allows remote configuration of various functions without the need to return to the base station setup point, facilitating flexible adjustment of work requirements in complex environments. IP68 Design Industrial-Grade Design, Robust Magnesium Alloy Casing, Meeting IP68 Standards for Durability and Reliability. Europe, North & South America Tel & WhatsApp: +1 (323) 847-7713 (Ian) Asia, Africa & Oceania Tel & WhatsApp: +86 139 2607 5986 (Jeffrey) www.toknav.cn info@toknav.cn 2023 Copyright Guangzhou Toksurvey Information Technology Co., Ltd - tBase GNSS Receiver TOKNAV ITEM SPECIFICATION REMARKS HARDWARE SYSTEM ARM Cortex-A7 1.8GHz OS Linux GPS L1 C/A, L1C, L2P(Y), L2C, L5 GLONASS L1, L2, L3 BDS B1I, B2I, B3I, B1C, B2a, B2b GALILEO E1, E5a, E5b, E6 QZSS L1, L2, L5 SBAS L1 GNSS NavIC (IRNSS)* L5 Channel 1408 Standard Output NMEA-0183 Correction I/O Protocol RTCM 3.X Frequency 20Hz 20Hz Max Reacquisition Time <1s Cold Start Time <40s ACCURACY SINGLE (RMS) Horizontal: 1.5m / Vertical: 2.5m DGPS (RMS) Horizontal: 0.4m / Vertical: 0.8m RTK (RMS) Horizontal: ± (8mm+1ppm) Vertical: ± (15mm+1ppm) Timing Precision (RMS) 20ns Static Mode Precision (RMS) Horizontal: ± (2.5mm+1ppm) Vertical: ± (5mm+1ppm) Velocity Estimation (RMS) 0.03m/s Tilt Correction (Within 60°) <2cm SYSTEM PLATFORM Bluetooth BR+EDR+BLE WIFI 802.11 b/g/n Network LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 LTE TDD: B38/39/40/41 WCDMA: B1/2/4/5/6/8/19 GSM: B2/3/5/8 Radio Integrated high-power transceiver Frequency Range: 410~470MHz Power: 5W(37±1dBm) 1W(30±1dBm) Protocols: TRIMTALK, TRIMMK3, SOUTH, TRANSEOT Air Baud Rate: 9600, 19200 Storage 32GB storage INDICATOR Power Indicator Indicates power and charging status Differential Signal Indicator Indicates differential signal transmission status Satellite Indicator Indicates satellite reception status Bluetooth Indicator Indicates Bluetooth connection status BATTERY/CHARGE Capacity 7.2V, 13800mAh Endurance Over 15 hours (In high-power build-in radio transmission mode) TBD Charging Supports USB PD 15V/2A and 5V/3A With adaptive dynamic current adjustment Europe, North & South America Tel & WhatsApp: +1 (323) 847-7713 (Ian) Asia, Africa & Oceania Tel & WhatsApp: +86 139 2607 5986 (Jeffrey) www.toknav.cn info@toknav.cn © 2023 Copyright Guangzhou Toksurvey Information Technology Co., Ltd - tBase GNSS Receiver TOKNAV ENVIRONMENT Operating Temperature -20 C~+60 C Storage Temperature -40 C~+85 C Shock Resistance Can withstand a 1.5m drop at normal temperatures Protection Rating IP68 PHYSICAL Materials Magnesium alloy casing with ABS/PC plastic top cover Dimensions Ф174.9 * 104.9mm Weight ≤2kg TBD ACCESSORIES tBase 1 Unit Power adapter 1 PCS Type-C to Type-C 1 PCS Radio Antenna 1 PCS Manufacturers may update parameters at any time, please refer to the latest product information. Equipped with electronic fence system, Toknav's product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details. Europe, North & South America Tel & WhatsApp: +1 (323) 847-7713 (Ian) Asia, Africa & Oceania Tel & WhatsApp: +86 139 2607 5986 (Jeffrey) www.toknav.cn info@toknav.cn 2023 Copyright Guangzhou Toksurvey Information Technology Co., Ltd

التفاصيل

قسم

الكترونيات

السعر

‪٢٬٥٠٠٬٠٠٠‬ دينار

العنوان

بغداد – نفق الشرطة

وقت النشر

قبل ساعة

شركة الاحتراف الهندسي الوكيل الحصري في العراق لشركة TOKNAV tBase GNSS Receiver � دقة عالية +قوة ارسال + بطارية طويلة � 1408 قناة GNSS 🔹 يدعم GPS / GLONASS / BDS / GALILEO / QZSS / SBAS / NavIC 🔹 دقة RTK تصل إلى: ±(8mm + 1ppm) أفقياً ±(15mm + 1ppm) عمودياً 🔹 دقة الوضع Static تصل إلى ±2.5mm + 1ppm أفقياً 🔹 IMU Tilt مع تصحيح الميل حتى 60° 🔹 راديو UHF داخلي عالي القدرة 410–470 MHz 🔹 قدرة إرسال تصل إلى 5W حسب الإعداد 🔹 يدعم 4G + Wi-Fi + Bluetooth 🔹 يدعم بروتوكولات الراديو TRIMTALK / TRIMMK3 / SOUTH / TRANSEOT 🔹 تردد تحديث يصل إلى 20Hz 🔹 ذاكرة داخلية 32GB 🔹 بطارية ضخمة 13,800mAh 🔹 تشغيل أكثر من 12 ساعة في وضع Base مع راديو 5W 🔹 حماية IP68 ضد الماء والغبار 🔹 يتحمل السقوط حتى 1.5 متر 🔹 هيكل قوي من سبائك المغنيسيوم 🔹 وزن 1.5 كغم 🔹 أبعاد 174.9 × 104.9mm 🔹 يعمل بدرجات حرارة من -20°C إلى +60°C. يغطي مساحة 15km � ويانا هدايا عند الشراء: 📏 Pole (رود) ⚡ فلاش 🎁 هدايا إضافية 💵السعر 2,500,000 🛡️ ضمان وخدمة ما بعد البيع 🏢 شركة الاحتراف الهندسي 📍 بغداد – نفق الشرطة 📞 للطلب والاستفسار: *********** نص مكتوب في الصور: - TOKnAV tBase GNSS Receiver The tBase is developed specifically for professional base station applications. It features a high-precision positioning module, supporting full-system, multi-frequency satellite signal tracking. Equipped with 4G, Bluetooth, WiFi, a 5W radio, and a large-capacity battery, it meets the demands for concurrent data links at base stations and alleviates the endurance concerns typical of built-in radio work modes, making measurements more convenient and efficient. Characteristic Linux Smart System Runs on a Linux+ARM Cortex-A7 platform, offering high-efficiency computing and infinite scalability of product functions. Full System GNSS Reception The receiver integrates a high-precision positioning module, utilizing 1408 channels to support a comprehensive range of signals including BDS (B1I/B2I/B3I/B1C/B2a/B2b), GPS (L1/L2/L5), GLONASS (L1/L2/L3), Galileo (E1/E5a/E5b/E6), and QZSS (L1/L2/L5) Extended Range and Battery Life Features a built-in radio capable of 5W transmissions and a 13800mAh battery, ensuring operational distances over 15km and continuous operation up to 15 hours. Concurrent Data Links The integrated 4G and 5W radio enable simultaneous network and radio differential transmission, streamlining operations by eliminating the need to choose between radio and network. Remote VPN Management With an integrated VPN, the receiver allows remote configuration of various functions without the need to return to the base station setup point, facilitating flexible adjustment of work requirements in complex environments. IP68 Design Industrial-Grade Design, Robust Magnesium Alloy Casing, Meeting IP68 Standards for Durability and Reliability. Europe, North & South America Tel & WhatsApp: +1 (323) 847-7713 (Ian) Asia, Africa & Oceania Tel & WhatsApp: +86 139 2607 5986 (Jeffrey) www.toknav.cn [email protected] 2023 Copyright Guangzhou Toksurvey Information Technology Co., Ltd - tBase GNSS Receiver TOKNAV ITEM SPECIFICATION REMARKS HARDWARE SYSTEM ARM Cortex-A7 1.8GHz OS Linux GPS L1 C/A, L1C, L2P(Y), L2C, L5 GLONASS L1, L2, L3 BDS B1I, B2I, B3I, B1C, B2a, B2b GALILEO E1, E5a, E5b, E6 QZSS L1, L2, L5 SBAS L1 GNSS NavIC (IRNSS)* L5 Channel 1408 Standard Output NMEA-0183 Correction I/O Protocol RTCM 3.X Frequency 20Hz 20Hz Max Reacquisition Time <1s Cold Start Time <40s ACCURACY SINGLE (RMS) Horizontal: 1.5m / Vertical: 2.5m DGPS (RMS) Horizontal: 0.4m / Vertical: 0.8m RTK (RMS) Horizontal: ± (8mm+1ppm) Vertical: ± (15mm+1ppm) Timing Precision (RMS) 20ns Static Mode Precision (RMS) Horizontal: ± (2.5mm+1ppm) Vertical: ± (5mm+1ppm) Velocity Estimation (RMS) 0.03m/s Tilt Correction (Within 60°) <2cm SYSTEM PLATFORM Bluetooth BR+EDR+BLE WIFI 802.11 b/g/n Network LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 LTE TDD: B38/39/40/41 WCDMA: B1/2/4/5/6/8/19 GSM: B2/3/5/8 Radio Integrated high-power transceiver Frequency Range: 410~470MHz Power: 5W(37±1dBm) 1W(30±1dBm) Protocols: TRIMTALK, TRIMMK3, SOUTH, TRANSEOT Air Baud Rate: 9600, 19200 Storage 32GB storage INDICATOR Power Indicator Indicates power and charging status Differential Signal Indicator Indicates differential signal transmission status Satellite Indicator Indicates satellite reception status Bluetooth Indicator Indicates Bluetooth connection status BATTERY/CHARGE Capacity 7.2V, 13800mAh Endurance Over 15 hours (In high-power build-in radio transmission mode) TBD Charging Supports USB PD 15V/2A and 5V/3A With adaptive dynamic current adjustment Europe, North & South America Tel & WhatsApp: +1 (323) 847-7713 (Ian) Asia, Africa & Oceania Tel & WhatsApp: +86 139 2607 5986 (Jeffrey) www.toknav.cn [email protected] © 2023 Copyright Guangzhou Toksurvey Information Technology Co., Ltd - tBase GNSS Receiver TOKNAV ENVIRONMENT Operating Temperature -20 C~+60 C Storage Temperature -40 C~+85 C Shock Resistance Can withstand a 1.5m drop at normal temperatures Protection Rating IP68 PHYSICAL Materials Magnesium alloy casing with ABS/PC plastic top cover Dimensions Ф174.9 * 104.9mm Weight ≤2kg TBD ACCESSORIES tBase 1 Unit Power adapter 1 PCS Type-C to Type-C 1 PCS Radio Antenna 1 PCS Manufacturers may update parameters at any time, please refer to the latest product information. Equipped with electronic fence system, Toknav's product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details. Europe, North & South America Tel & WhatsApp: +1 (323) 847-7713 (Ian) Asia, Africa & Oceania Tel & WhatsApp: +86 139 2607 5986 (Jeffrey) www.toknav.cn [email protected] 2023 Copyright Guangzhou Toksurvey Information Technology Co., Ltd
